Platform

The suspension platform is a suspension device that is surrounded by guardrails and is used to carry workers, tools and materials for high-altitude operations.

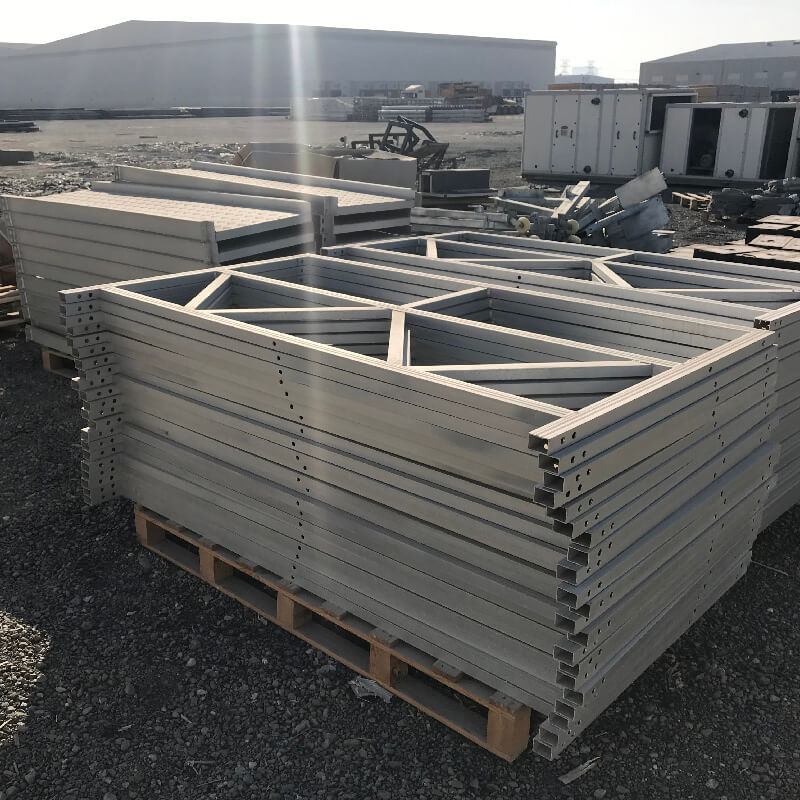

Xplatform platform widely used in building facade cleaning and maintenance, is broadly used in constructions and industries. It consists of high and low balustrades, bottom plate and mounting frame for hoist. The mounting frames are fixed on the both ends of the platform and the hoists & safety locks should be fixed on the frame.

Platform specifications:

Materials: Aluminum alloy
Sizes available (m): 1,1.5,2,2.5 &3
5 mm box section x 2mm Platform
Aluminum Finish: Powder Coated
End Stirrup Finish: Powder Coated

Control Box

Xplatform control box is a part of control system of Temporary Light Equipment Mechanism. Allows perfect command of hoist, with emergency stop button, emergency alarm and has central control and self-leveling device. And is used for the control of the up and down movement of the suspended platform

Installed with national and international famous brands electrical components (Zhengtai and Schneider).

Our electrical control system is the product that you can rely on. Moreover with safety device such as electric leakage protection device, relay protection of power system, automatic limited switch and good waterproof. We ensure the operation easier, safer and more reliable we could also make in order

Features:

Allows perfect command of hoist
Emergency stop button
Single phase socket
Control transformer 24/36/380 VAC
Indicating lamp of the power
Earth leakage circuit beaker
Gasket sealed door
Tamper proof lock
Backing plate for mounting of components
Detachable bottom plate to allow cable entry points to be installed

Electric Component:

AC Contactor
Circuit breaker
Transformer
Over Load Relay

Advantages

Absolutely guarantee life safety during Aerial working.Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist; Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop; Good-quality steel wire rope, safety rope and cable.
Stable performance: raise up and lower down smoothly
Modular design. Easy to disassemble, assemble operate and maintain.

XPL Hoist

The hoists for suspended platform is the power mechanism for lifting and lowering the working platform. It is the core part of the basket, which acts as a deceleration and traction, and has various functions such as balanced traction, lifting and lifting. The hoists for suspended platform is mounted on the side rails of both ends of the table with a hoist.

The hoist for Xplatform consists of electromagnetic brake motor, centrifugal speed limiter and dual speed reduction system and “α” cable-guiding system, The hoist is driven by the electromagnetic brake three-phase asynchronous motor through the worm gear and a pair of reduced gears. The suspended platform will be moved upward and downward with the movement of the hoist.

Product Advantages:

Very reliable: less maintenance, higher productivity and higher efficiency.
Compact design: easy to install and integrate into your specific application.
Light weight: This will maximize the amount of work available for better performance.
Stability: Constant lifting torque and speed, independent of lifting height.
Manual decent control for emergency
Upper limit switch
Overload protection device for optional

PARAMETER OF XPL HOIST MOTOR

Safety Lock

Safety lock for suspended platform is a self-contained mechanical device that automatically locks the safety wire rope when the working wire rope breaks or the platform is tilted to the limit. Our safety locks are suitable for hanging platforms. If the suspension platform is tilted or the working cable is broken, the normal platform parts safety lock automatically locks the safety cable at the set cable locking angle. It is the most important safety device of suspended platform.

Our Safety lock has excellent design and superior quality. The safety lock will automatically lock the wire rope in the condition of the breaking of the suspension rope or the tilting of platforms. Xplatform safety lock uses special stainless steel and powder coating, with strong impact resistance, higher toughness and wear resistant, long services life, safe and reliable.

safety lock is a safety device that can automatically close when the working wire rope is broken or the suspension platform is slid at one end, so that the suspension platform is tilted; the safety wire rope is locked; the suspension platform is stopped; the safety device for preventing the suspension platform from falling

The safety lock will work at following situations:

When the working wire rope breaks or the working platform is inclined by 3°～8°, the safety lock can automatically lock the wire rope.
When the working wire rope breaks or other reasons cause the working platform to fall rapidly, the safety lock can automatically lock the safety wire rope within 100mm;
when the suspended platform hoist or motor fails, the safety wire rope can be manually locked

Steel Wire Rope

Xplatform steel rope used in hoists for the equipment is special galvanized steel rope, The end of the steel wire rope fixed on the suspension mechanism is fixed with thimble secured by pressing a high grade aluminum alloy ferrule under a high pressure in dies and tested having a proof load of 50 kN in the tensile test machine with 1000 kN capacity. The steel wire rope for suspended platform is the main component to withstand the load of the basket, so there are strict requirements for the wire rope used. The steel lifting cradle for suspended platform adopts the steel wire rope for the galvanized hanging basket, which has the characteristics of high strength and good rust prevention performance.

Power Cable

Rubber insulated cable cords and soft cables with the rated voltage of 450/750V and below .The cable is suitable for the connections among household appliances, electric tools and various portable electrical equipment with the rated AC voltage 450/750V and below.

Limit Switch

The limit device is a device that limits the movement of the component or device beyond a preset limit position.

Suspended Platform Hanging Support

With the site team and the technical engineering experience XPLATFORM do have made us capable to provide the common Hanging Systems in addition to any special requirements or any other Special Applications required for any site.

1. Parapet Clamp:

It is a rigging device for suspended platforms when the space on the roof is very limited to use. Due to the movement load imposed on the parapet wall, clamps must be used on reinforced concrete structures. It’s safe and reliable, doesn’t touch the building roof parapet, easy to relocate to another location, small in size.

2. Hanging Device with Counter Weight System

The suspension mechanism is the heavy-duty steel frame structure fixed on the top of the building as the supporting equipment. It is mobile, adaptable and easy to erect and dismantle requirements or any other Special Applications required for any site.

Features:
